Success story

Pipistrel: flying straight from simulation to production

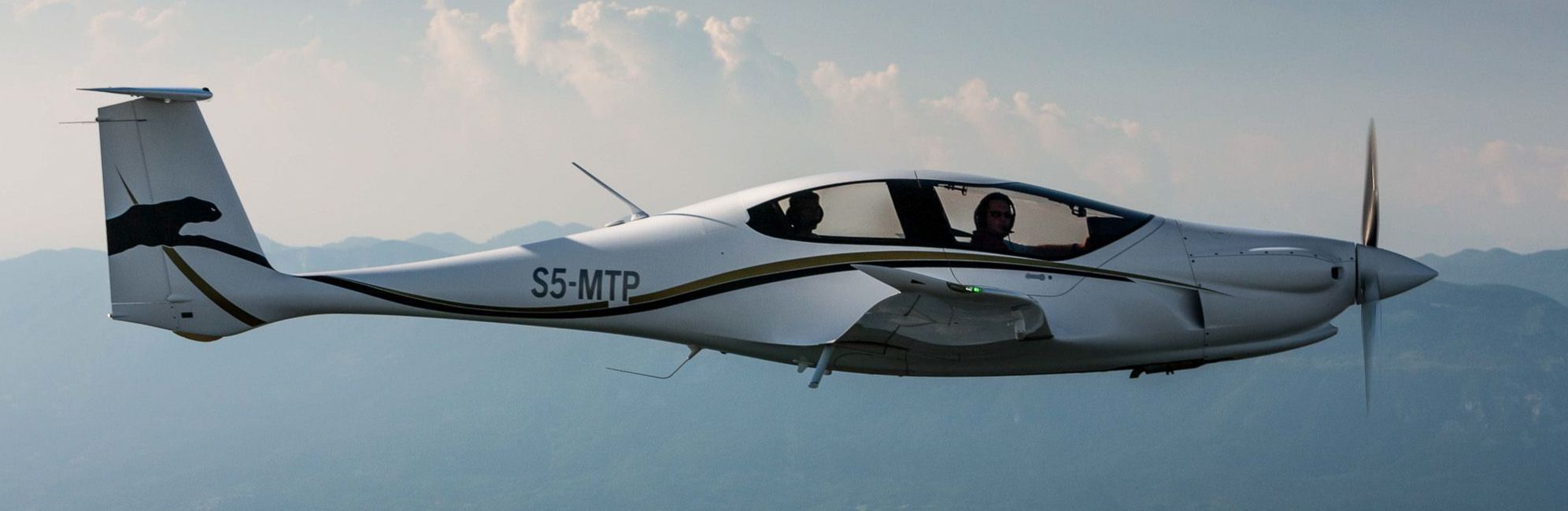

Pantheratwod
  • Company: Pipistrel
  • ESTECO Software Solution: modeFRONTIER
  • Benefits:
    Evaluate five thousand designs in a limited time
    Skip prototype and go straight into production
    Increase the thrust by 30% during takeoff

The ESTECO optimization technology as a way to skip any prototype phase for a hybrid-electric aircraft propeller

Pipistrel, an aviation & aerospace company based in Slovenia, relied on ESTECO Technologies to design the propeller for a highly efficient, hybrid-electric aircraft. The work was part of the EU-funded project MAHEPA (Modular Approach to Hybrid Electric Propulsion Architecture), that had the aim of advancing two variants of a low emission, serial hybrid-electric propulsion architecture to TRL (Technology Readiness Level) 6. The modeFRONTIER process automation and optimization software allowed automation in the simulation process and identification of innovative and optimized designs in a limited time.

Download success story

"We trust the results we get with modeFRONTIER so much that we don’t expect we’ll require a prototype. We go straight into production."

David Eržen Aerodynamics Engineer Pipistrel

Challenge

Engineers at Pipistrel had the challenge to design a propeller, driven by hybrid-electric propulsion system taking into account the different conditions the aircraft meets during the four flight phases: takeoff, climb, cruise and descent. Considering speed, power and thrust requirements changing during the flight, the objective was to maximize takeoff thrust and recuperation power during descent and minimize power during climb and cruise phase. The optimization involved three stages: the preliminary propeller optimization, the airfoil optimization, and the final propeller optimization.

Solution

For this multi-phase optimization project, Rok Lapuh and David Eržen, aero-dynamics engineers at Pipistrel, used modeFRONTIER coupled with CHARM (Comprehensive Hierarchical Aeromechanics Rotorcraft Model) and XFOIL, an interactive program for the design and analysis of subsonic isolated airfoils. Benefiting from the ESTECO process automation technology, Pipistrel could automate the simulation workflows, simultaneously evaluate thousands of designs and identify innovative optimized results. This process was conducted in a fully autonomous way leaving Pipistrel’s engineers the task to select the most appropriate design. With the first propeller optimization, Pipistrel optimized the chord and twist distribution to get the maximum thrust and minimum power for a given set of airfoils. The results were then used as requirements for the airfoil optimization. The design team used modeFRONTIER to design the airfoil under specific geometry constraints (thickness, cur- vature or leading-edge radius), while increasing the lift and reducing the drag. They started a Design of Experiments phase and then used the HYBRID genetic algorithm to successfully run the airfoil optimization and get the Pareto front with the optimal designs. At last, they used the optimum airfoil for the final propeller optimization. With the ESTECO optimization algorithms, engineers at Pipistrel could evaluate almost five thousand designs in a limited time and increase the thrust by 30% during takeoff.

Pipistrel modeFRONTIER workflow for hybrid propeller design

Benefits

Before using modeFRONTIER, Pipistrel went through a manual process to simulate multiple designs and choose the preferred one. With the introduction of ESTECO Technology, Pipistrel engineers not only were able to automate this process, but could evaluate options not considered otherwise. “modeFRONTIER optimization technology gave me the opportunity to think outside of the box - said Rok Lapuh, Aerodynamics Engineer at Pipistrel - We could find a design that is completely different from what we’re used to, but that may work even better”. They also dramatically reduced the go-to-market time as they moved from simulation directly to the production. “We trust the results we get with modeFRONTIER so much that we don’t expect we’ll require a prototype - said David Eržen, Aerodynamics Engineer at Pipistrel - We go straight into production”.

Pipistrel final hybrid propeller design

Optimization results: the final propeller design.

Pipistrel logo
Pipistrel

Pipistrel is an aviation & aerospace company based in Slovenia. It has more than 30 years of tradition in the ultralight and general aviation industry. Starting from a small business it has become the leading producer of efficient aircraft with electric and hybrid propulsion. pipistrel-aircraft.com
